The MT Supadrive SS hub was made for a huge number of our customers that wanted a single speed specific mountain bike hub, with high engagement.
The MT Supadrive SS hub utilises Supadrive, our most advanced and reliable drive system to date. The MT Supadrive SS hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level.
Wide spoke flanges and sealed cartridge bearings in the MT Supadrive SS hub ensure longevity.
Chainline is adjustable on the MT Supadrive SS thanks to the short width freehub, where cog placement can be adjusted to minimise chain wear and failures.
This hub can be run with most MTB frames including 135 x 10mm, 142 x 12mm Thru or 148 x 12mm Boost using our optional modular axle kits and conversions.
Please note this hub must be run with a fat footed type sprocket.
Included Fittings
- 135mm x M10 Nutted
- Cassette spacer kit - 1x 5mm, 2x 2.5mm, 1x 0.5mm and Lock ring
Optional Fittings
142 x 12mm Thru-axle conversion kit (Halo item # HUHAZSVSR2)

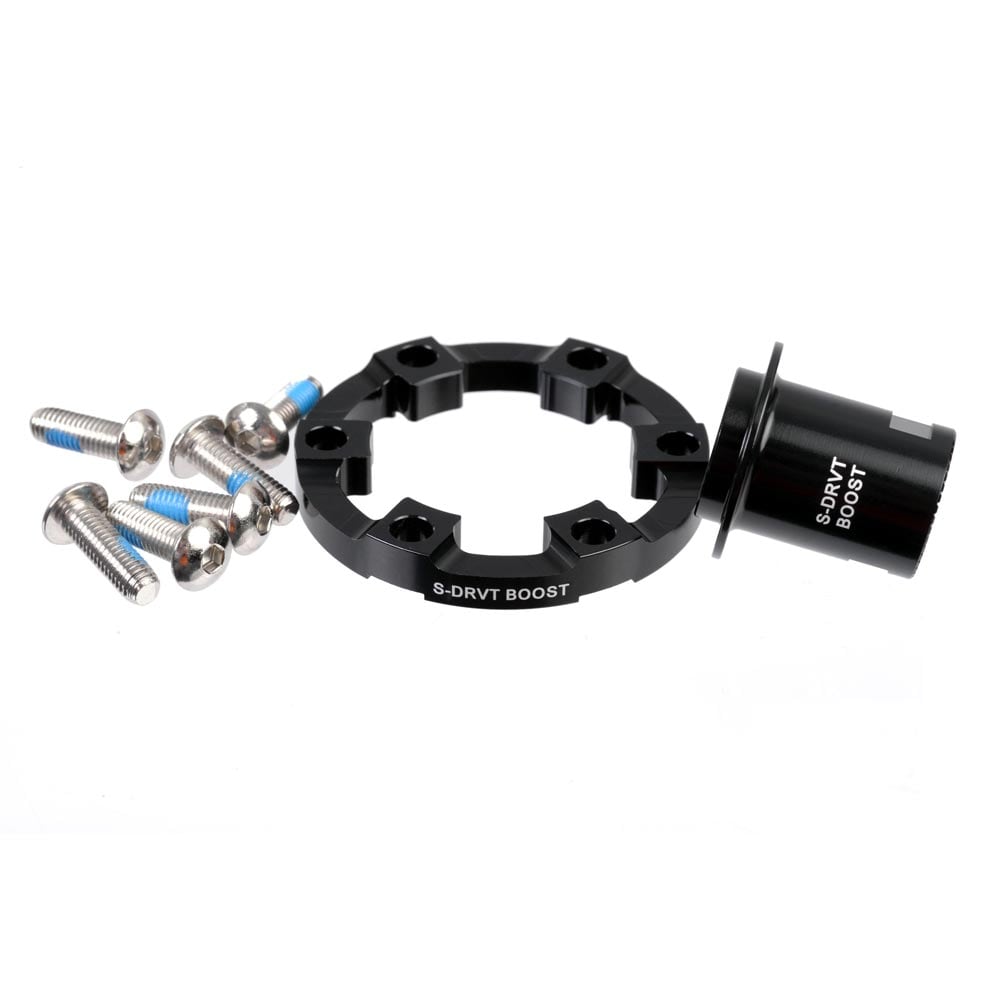

148 x 12mm Boost conversion kit (Halo item # HXHASVTB) Please note this requires the 142 x 12mm thru-axle (HUHAZSVSR2) to be fitted
Note: must be run with “Fat Foot” type sprocket
Specifications
- > Shell Material6061 Alloy
- > Drillings32H
- > Axle Material7075 Alloy
- > Axle DimensionsM10 x 135mm
- > Disc MountIS 6-bolt
- > Ratchet120 teeth triple-wedge pawl mechanism
- > Freehub TypeMini HG
- > Freehub Material7075 Alloy
- > Spoke Hole Circle Diameter (PCD)58mm
- > Centre to FlangeC-L 34mm, C-R 37mm
- > Bearings2 x 6902 (hub) 1 x 6802 and 1 x 6902 (Freehub)
- > OLD (Spacing)135mm
- > Model RefMTSS S-DRV-FG
- > ColourAnodised black
